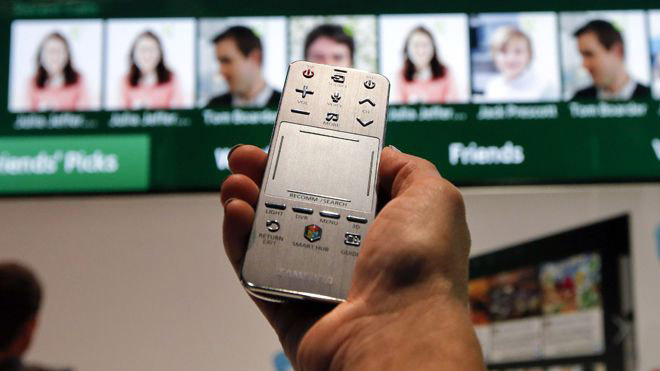

Samsung TV Smart Remote Control

The ridge interface design introduces a novel approach to device control through a physical protrusion from the surface of a display or touchpad. Ridges provide physical affordance, indicating edges of the touchpad. They can serve as one or several buttons, one can swipe across them, or they can be used as scroll controllers.

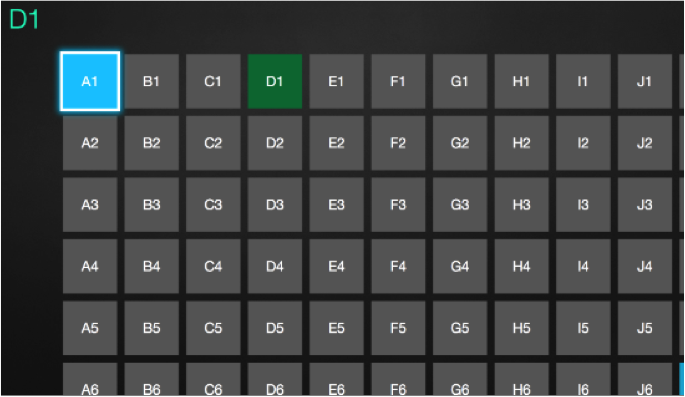

This tactile spatial reference provides haptic feedback, enabling new gestures such as swiping across, tracking along, or clicking on the ridge. A key advantage is the ability to control remote devices like TVs without looking at the control device itself, allowing for safer and more intuitive operation.

The design supports one-handed operation and control of multiple functions, typically featuring a horizontal base ridge with vertical left and right ridges. This configuration allows quick access to predetermined options at the ridge ends. The ridge interface can also incorporate security features through gesture authentication and offer tiered functionality based on contact area or pressure.

A significant benefit is the seamless control of both directional (e.g., up/down/left/right) and coordinate-based navigation. This versatility enhances efficiency and ease-of-use across various applications. The ridge interface is particularly valuable in potentially hazardous environments where visual attention needs to be focused elsewhere. This design represents an advancement in user interface technology, providing an ergonomic and customizable control mechanism that improves usability and enables new interaction paradigms for a wide range of electronic devices and systems. Its intuitive nature and flexibility make it a viable solution for enhancing user experiences in our increasingly digital world.

The image shows a detailed patent application figure illustrating how the ridges are integrated into the remote design. The top diagram depicts the remote's side view, highlighting the ridge placement. The bottom diagram shows how these ridges interact with the TV interface, demonstrating the innovative approach to user interaction.

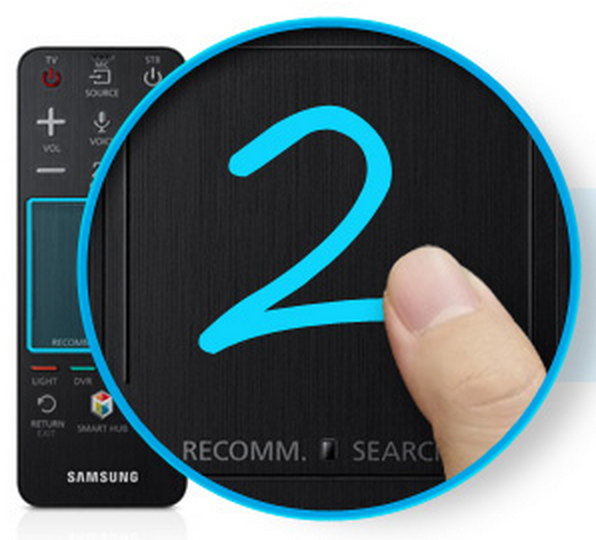

The handwriting recognition feature introduces an innovative approach to channel selection on TV remote controls. This software-based solution leverages the existing touchpad hardware to allow users to input channel numbers through familiar handwritten strokes. The system interprets these gestures and translates them into channel selections, eliminating the need for traditional number buttons. A key advantage of this approach is the preservation of the remote's streamlined design while enhancing its functionality. Users can input channel numbers quickly and intuitively without shifting their attention from the TV screen to the remote control, allowing for a more immersive viewing experience.

The design supports various handwriting styles and offers real-time feedback through on-screen display, enhancing user confidence and accuracy. This feature is particularly valuable for users who find on-screen number pads cumbersome or those who prefer the tactile experience of writing. Significant benefits include improved accessibility for users with varying levels of technological proficiency, reduced manufacturing costs by eliminating physical buttons, and the potential for future expansions such as text input for smart TV functions.

The development process involved extensive user testing with participants from diverse backgrounds, ensuring robustness and adaptability. The final implementation, ported from a JavaScript prototype to production-quality C++, represents an advancement in user interface technology for TV controls.
